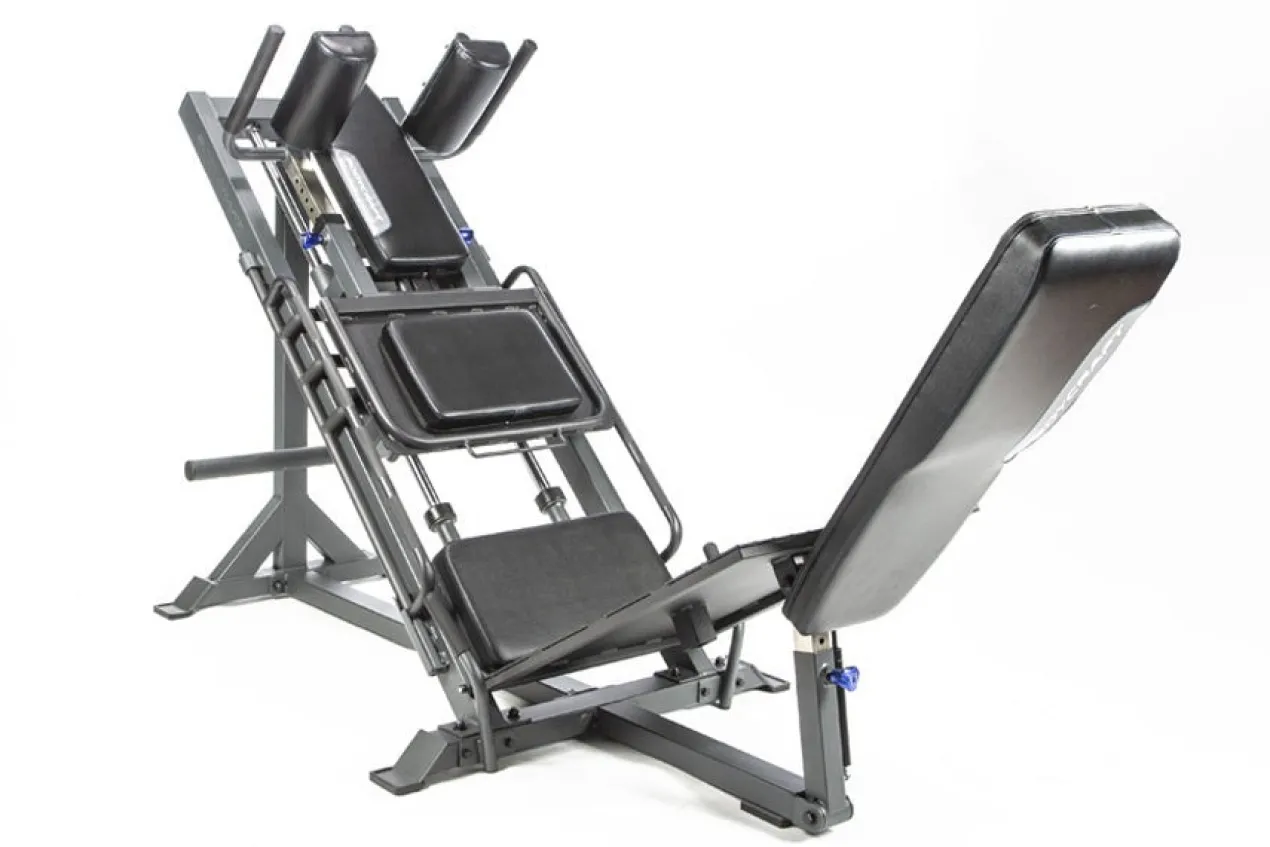

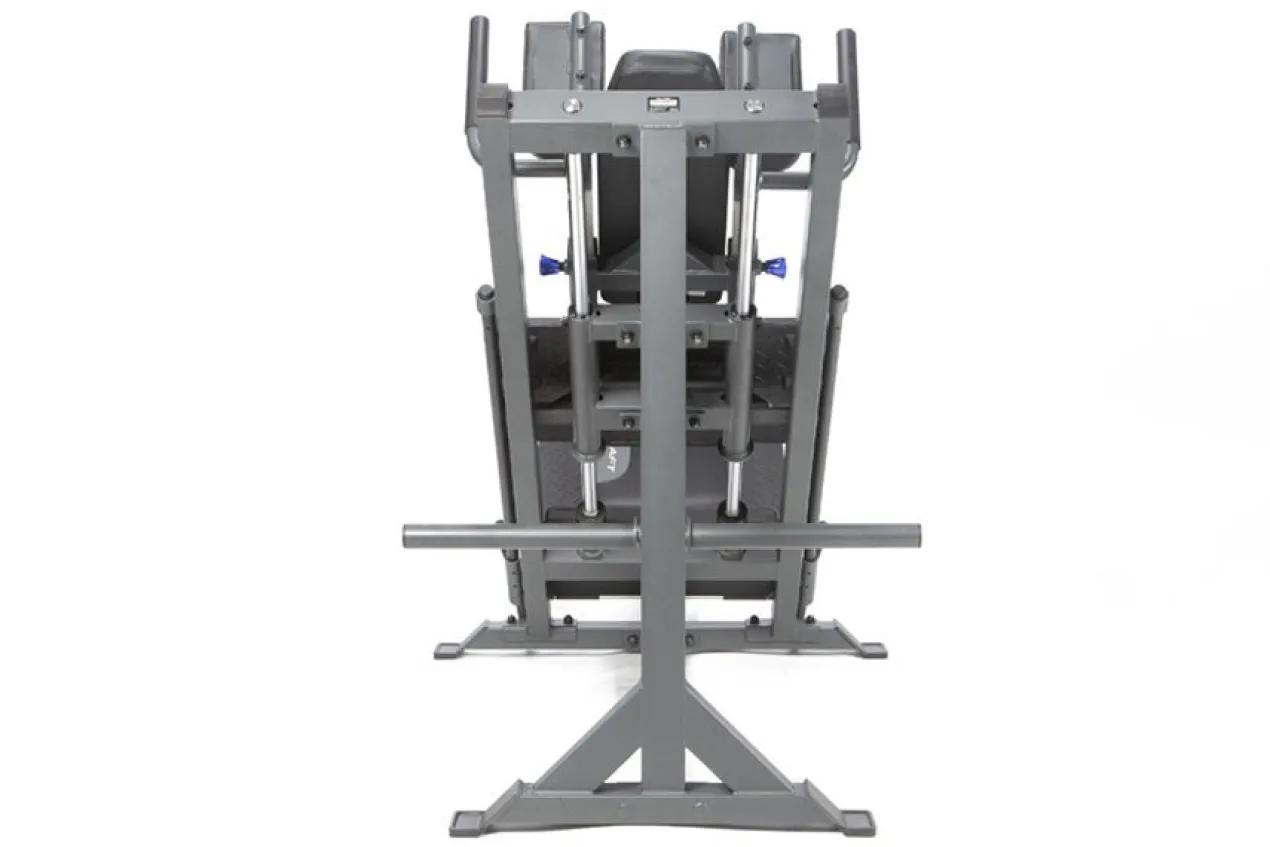

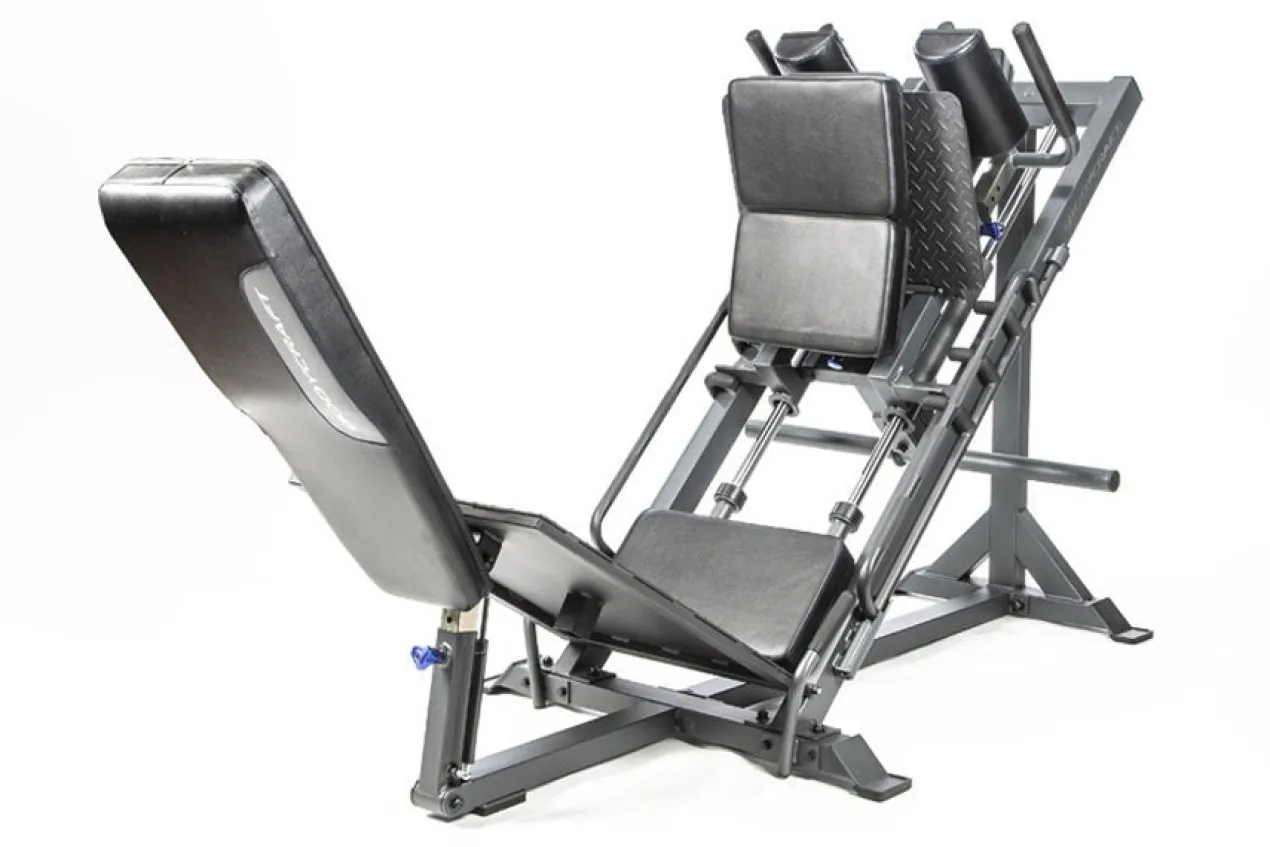

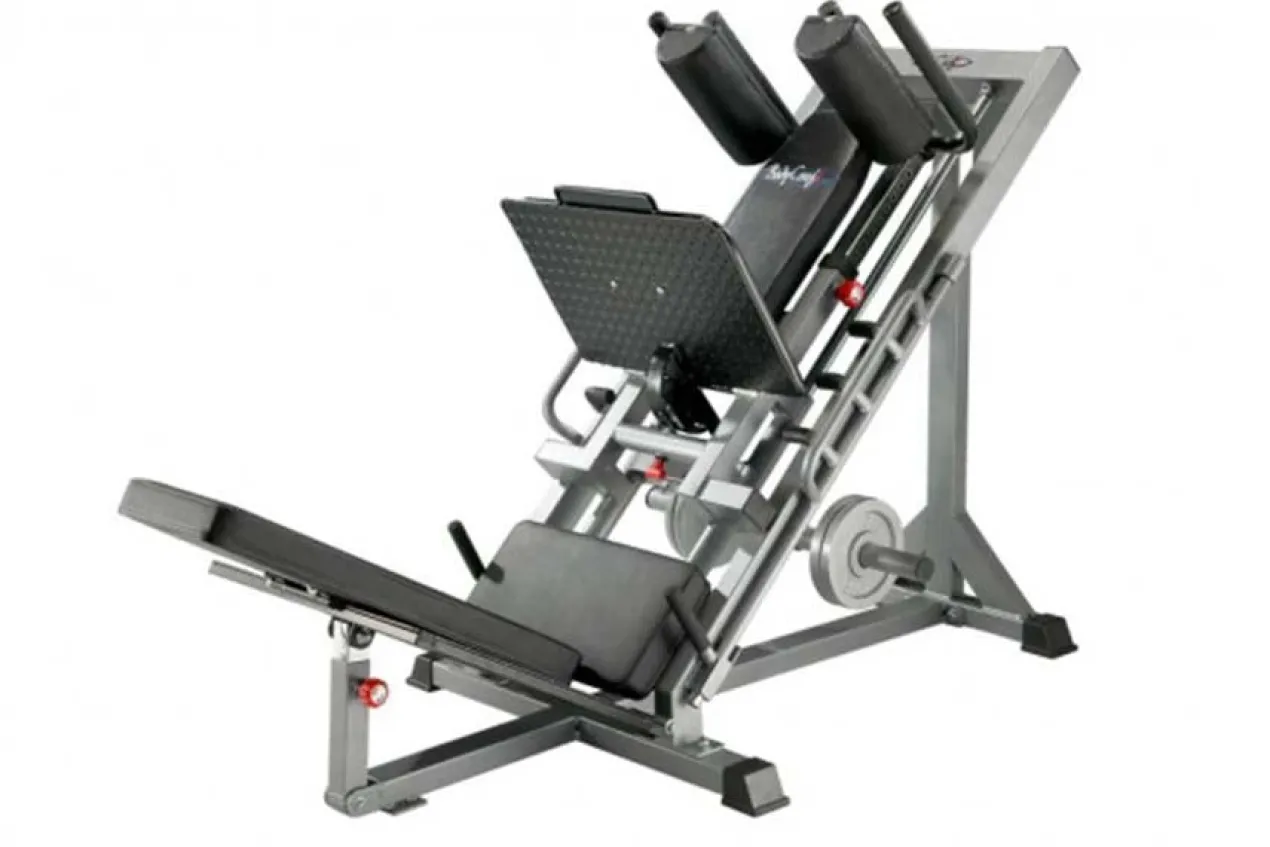

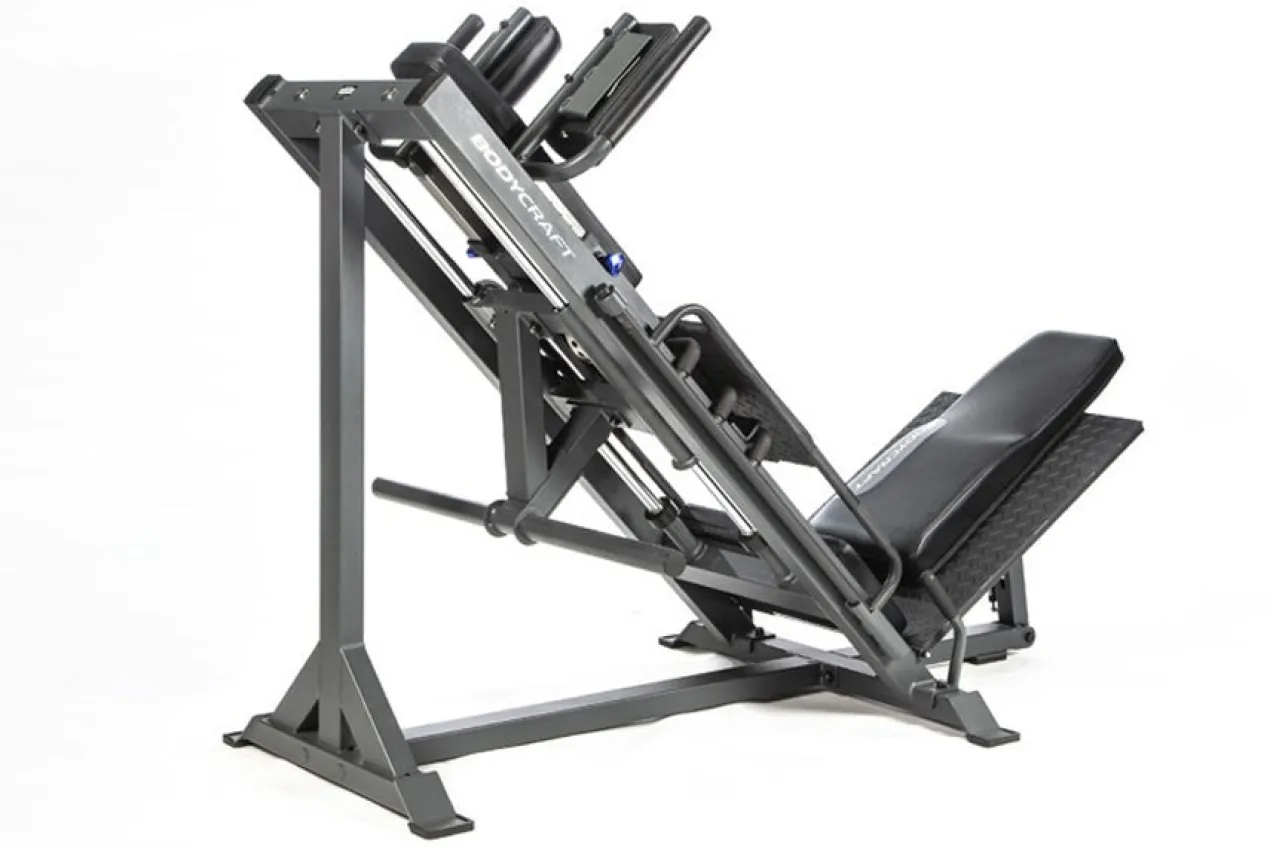

BodyCraft Pro Leg Press / Hack Squat (F760)

Your leg muscles are the strongest and toughest muscles in your body. The BodyCraft Pro Hip Sled Linear Bearing Leg Press / Hack Squat (F760) was designed with that in mind. From the heavy gauge steel, to the industrial grade linear bearings, the BodyCraft Linear-Bearing Hip Sled Leg Press / Hack Squat (F760) is built to withstand the toughest workouts – for a lifetime!

Features:

• Adjustable shoulder pads with handles
• Fully adjustable upper and lower foot plates
• Heavy duty 1,000 lb. weight capacity
• Includes Calf block for standing calves
• Includes donkey squat pad (can be used with Calf Block)

SPECIFICATIONS

• Construction: using heavy gauge, 2″ x 3″ steel tubing and 1/4″ plate steel.
• Carriage: rides on industrial grade Linear Bearings, and 1.25” case hardened steel solid guide rods. 75 lb. starting weight
• All pads: use double stitched heavy duty upholstery and high density foam.
• Leg press back pad: features lumbar support and flips up on a hinge for hack squat.
• Squat, Shoulder and Leg Press pads: permanently attached for convenience and longevity.
• Diamond skid leg press plate: can be adjusted to 5 different angles.

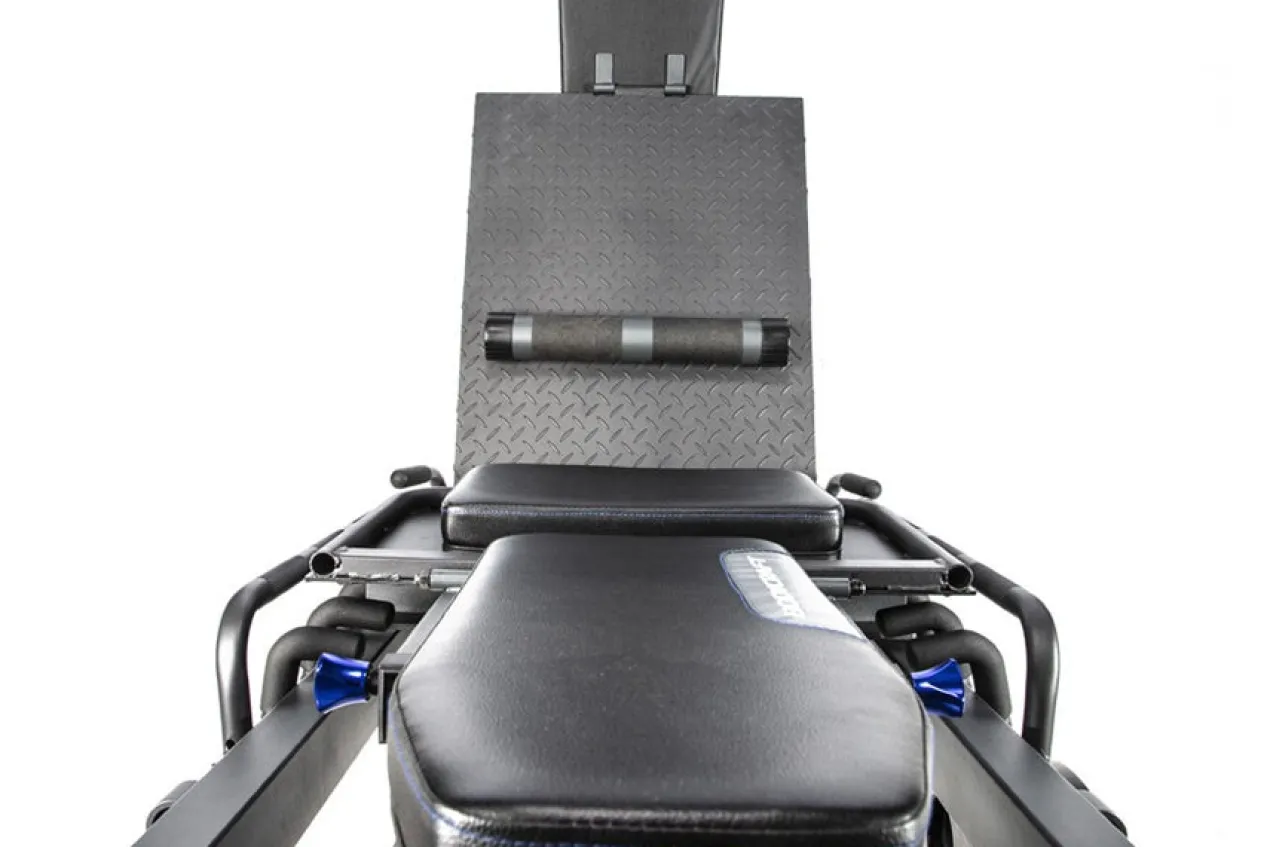

• Diamond skid hack squat plate: allows for multi-position foot placement and can be adjusted to 5 different angles.

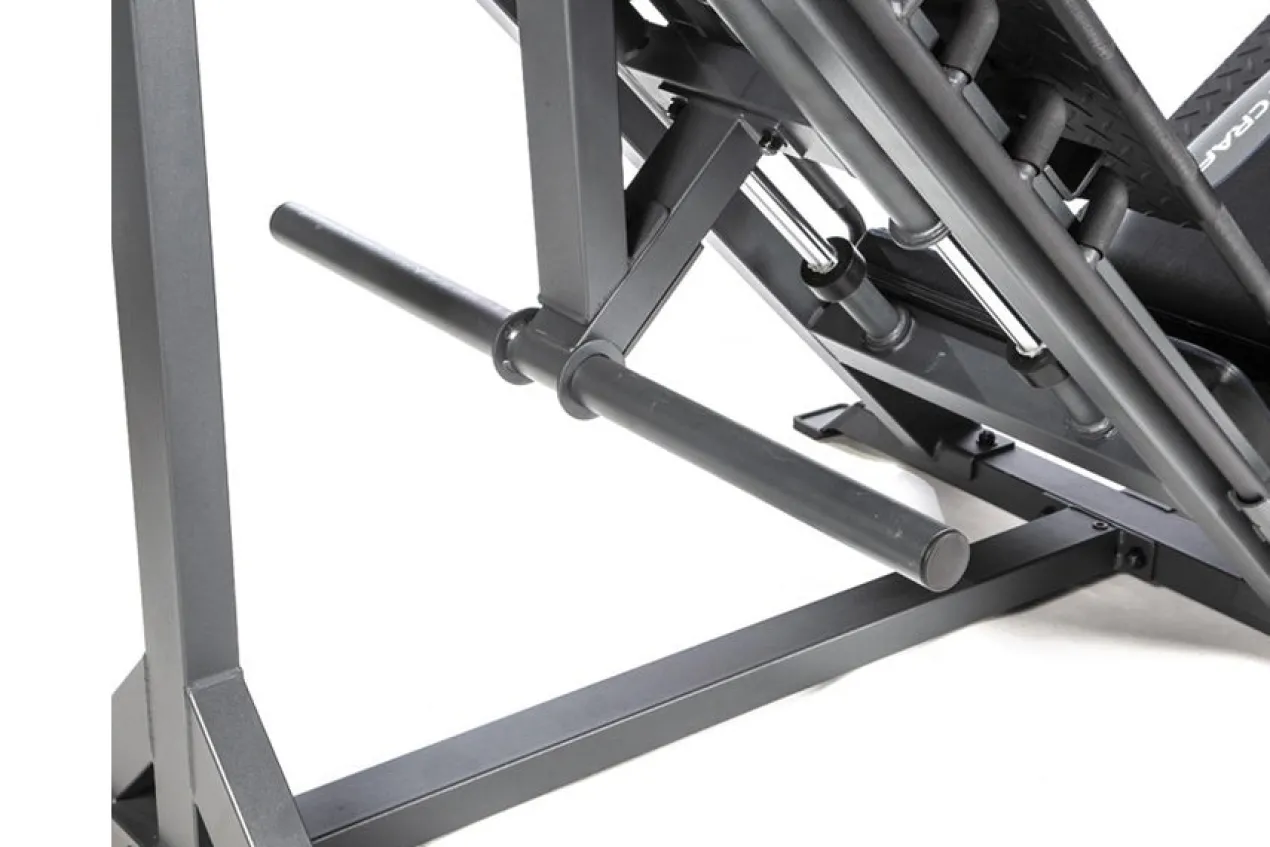

• Weight Capacity: 1,000 lbs. (Weight Holder is 12″ per side)
• Dimensions: 79″ L x 39″ W x 50″ H.

DETAILED SPECIFICATIONS

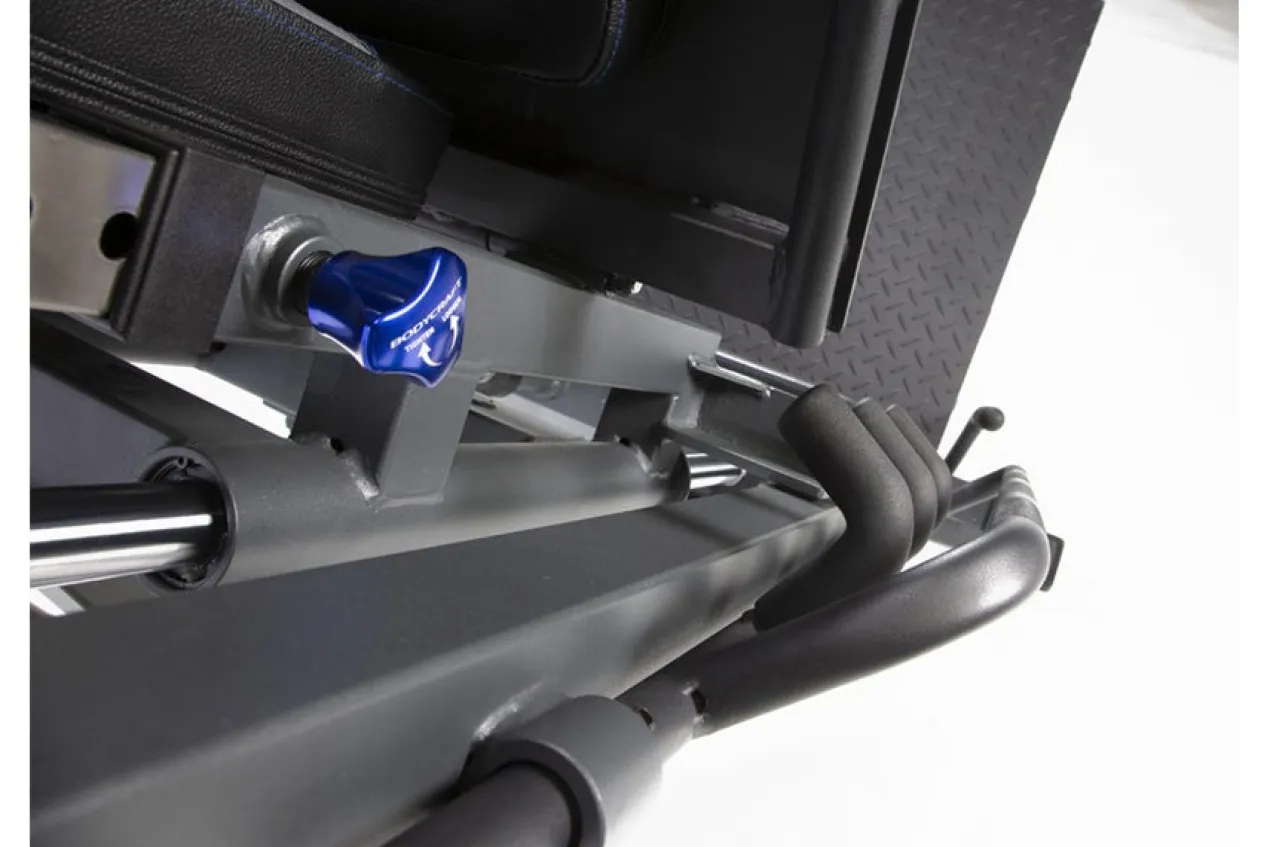

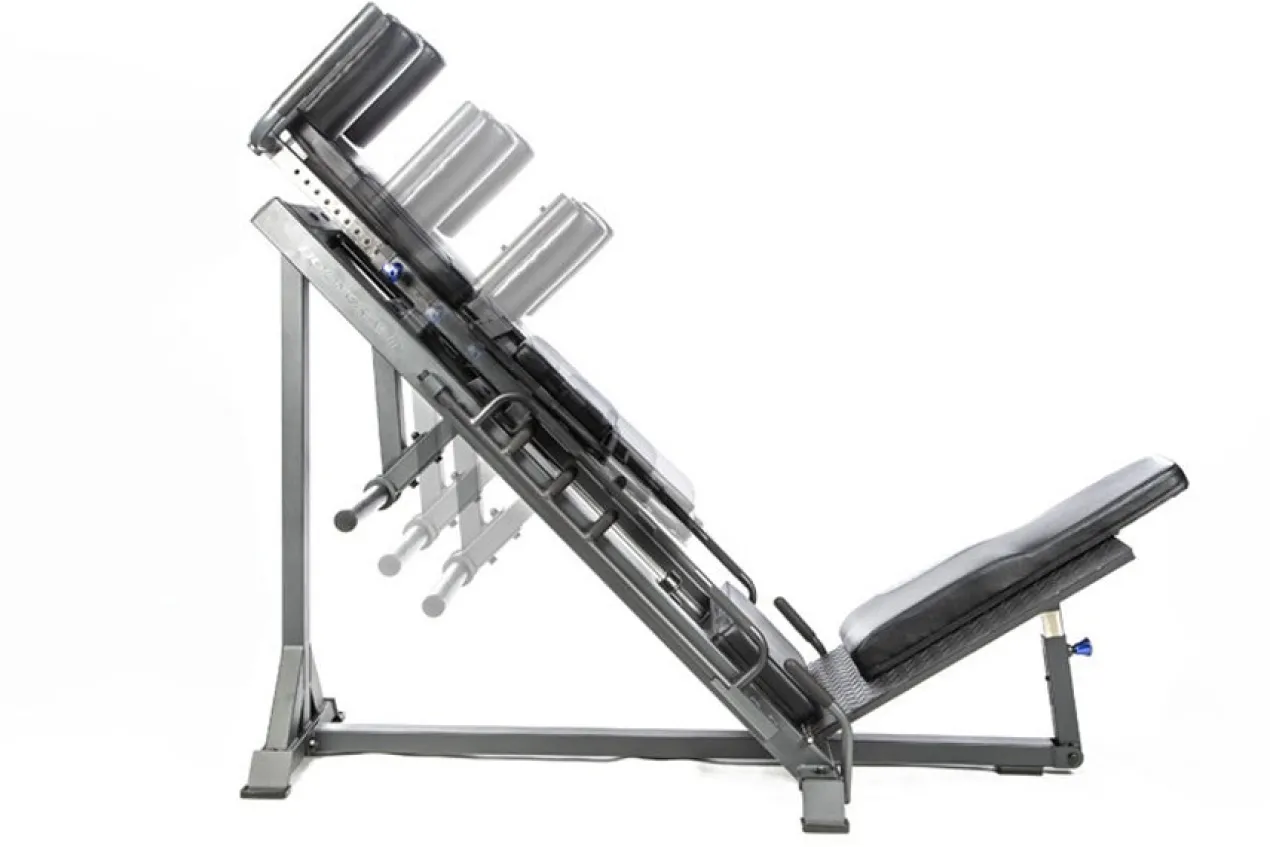

• SHOULDER PADS – Fully Adjustable, with 12″ of Travel and 13 Positions Accommodating a Wider Range of Users.
• SQUAT RANGE – 36″ at the Lowest Point to 79″ at the Highest Point
• UPPER FOOT PLATE – Adjust to 5 Different Angles from 75 Degrees to 135 Degrees
• UPPER FOOT PLATE – 24″ X 14″
• LOWER FOOT PLATE – Adjust to 5 Different Angles
• LOWER FOOT PLATE – 29.5″ X 24″
• DONKEY SQUAT PAD – Allows for Squats and Calf Raises by Pressing with Lower Lumbar, Relieving Spinal Compression

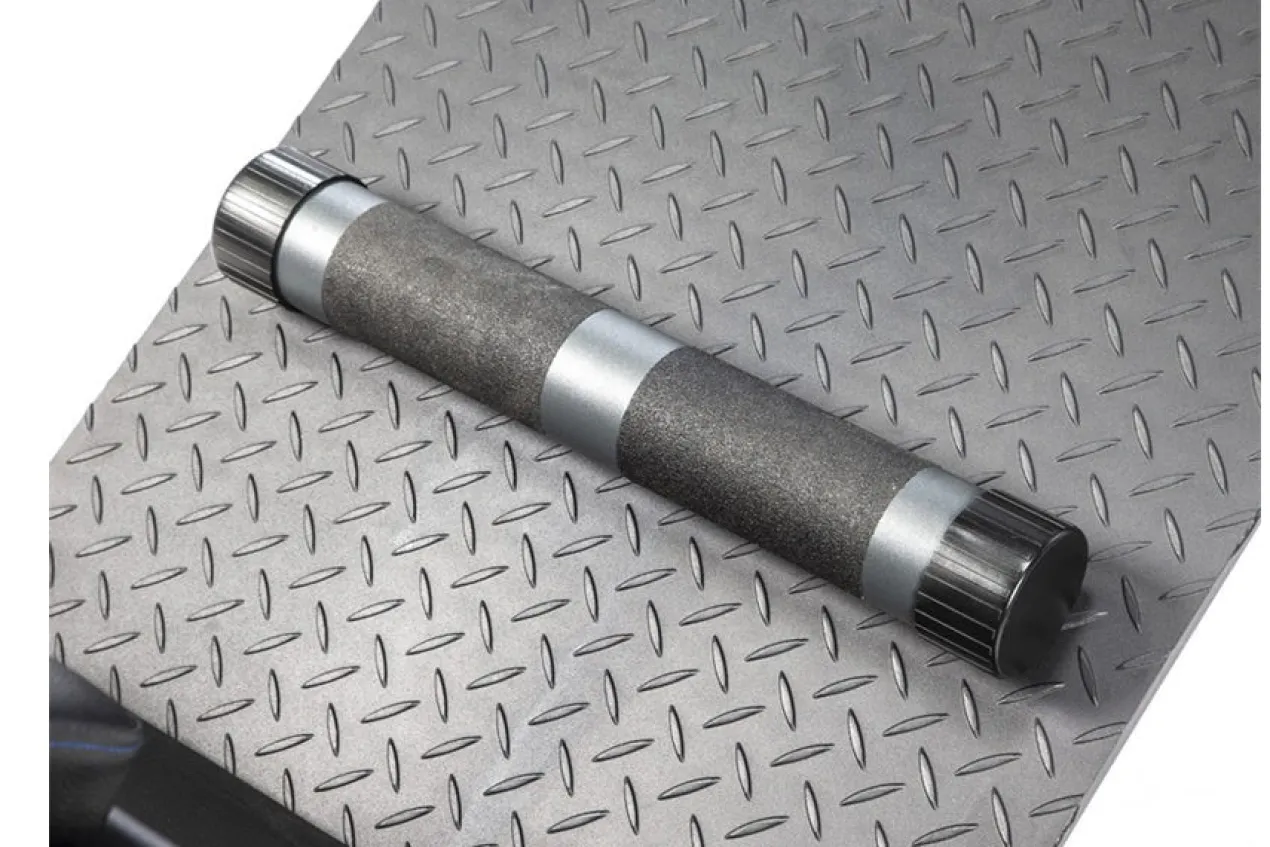

• CALF BLOCK – Removable 3″ Round Calf Block. Works in Conjunction with Donkey Squat Pad or Shoulder Pads
• DESIGN – Space Saving Design: With Weight Plate Loading Under the Carriage

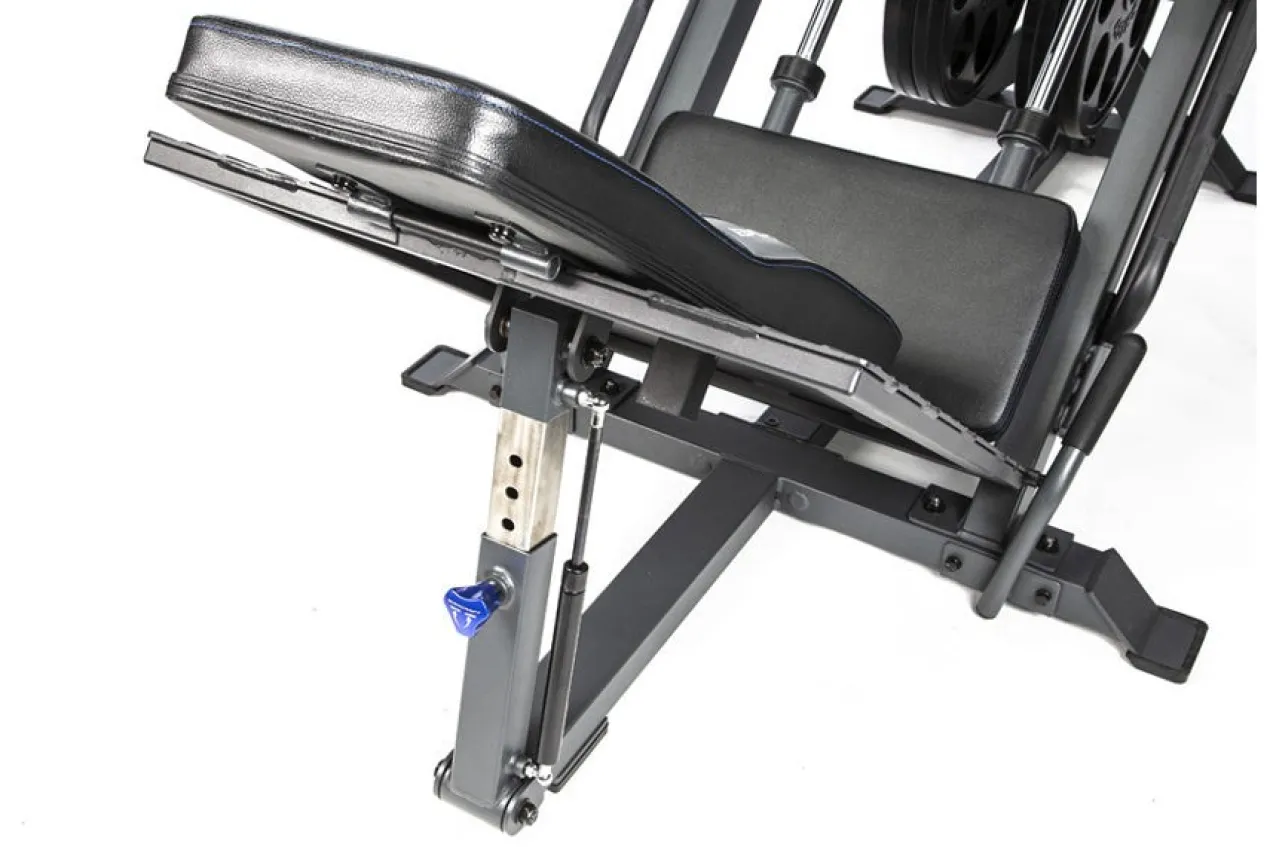

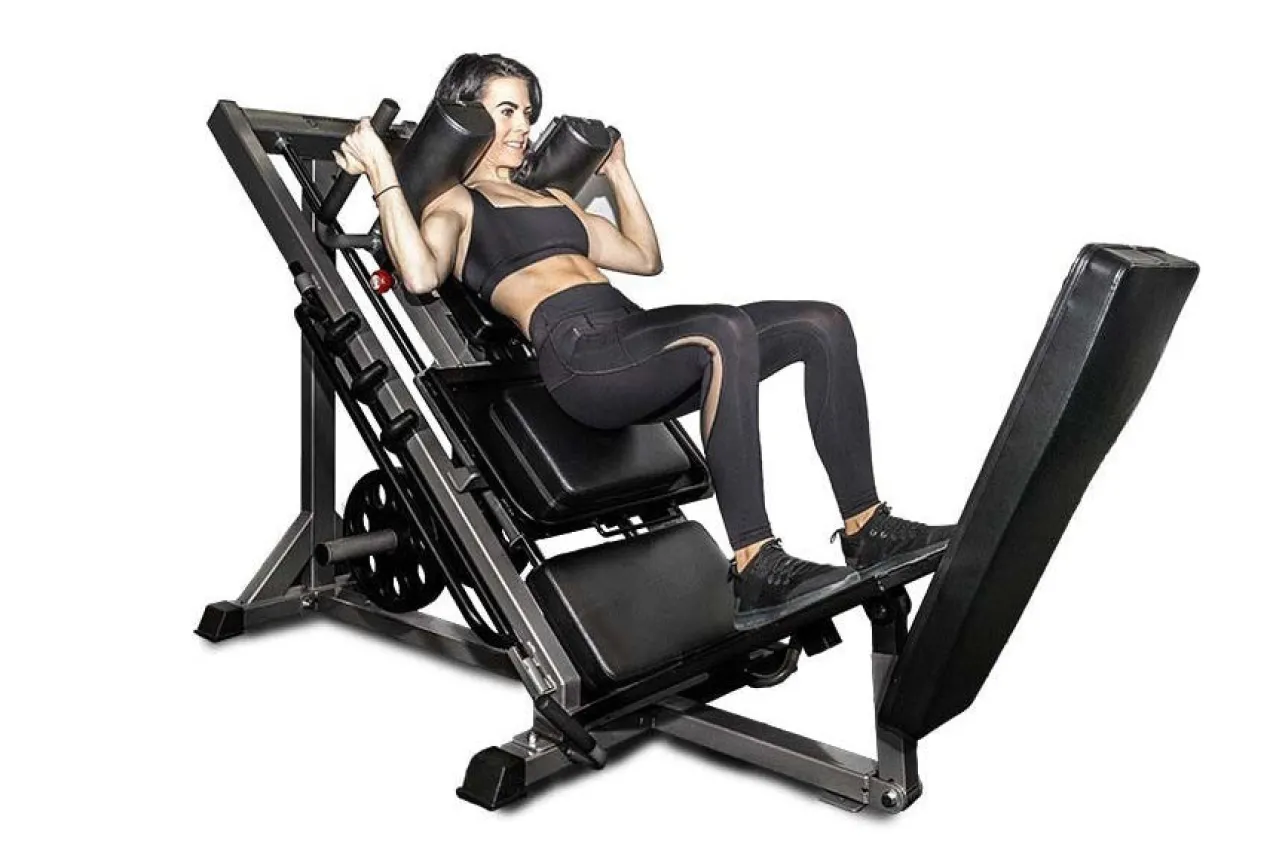

• BACK PAD – Leg Press Back Pad Features Lumbar Support and Flips Up on a Hinge for Hack Squat.
• LEG PRESS RANGE – Leg Press Range of 23″ at Lowest Point to 64″ at Highest Point
• CONSTRUCTION – Heavy Gauge, 2″ x 3″ Steel Tubing and 1/4″ Plate Steel.
• CARRIAGE – Rides on Industrial Grade Linear Bearings and Case Hardened Stainless Steel Solid Rods.
• BEARINGS – Industrial Grade LM30 Linear Bearings
• GUIDE RODS – Rides on Industrial Grade Linear Bearings, and 1.25” Case Hardened Steel Solid Guide Rods.
• CARRIAGE WEIGHT – 75 lbs. Starting Weight
• PADS – Double Stitched Heavy Duty Upholstery and High Density Foam.
• WEIGHT CAPACITY – 1,000 lbs.
• DIMENSIONS – 82.5″L x 41″W x 50.2~59.4″H
• WEIGHT – (Assembled) 411 lbs.
• FINISH – Diamond Gray and Black Electrostatic Powder-Coated Finish

Warranty

Residential:

• Life- frame*
• Life- parts*

Light Commercial:

• 10 year- frame*
• 2 year- parts*

6 months- wear items*

*Warranty applies to defects in materials and workmanship for original owner only. Does not apply to normal wear and tear. See manual for details.
